Honeycomb Belt Conveyor

Honeycomb Belt Conveyor Manufacturers, Suppliers in Pune

We Das Systems are leading Honeycomb Belt Conveyor manufacturers, suppliers in Pune.

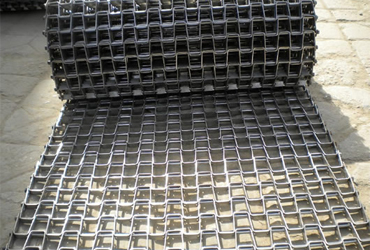

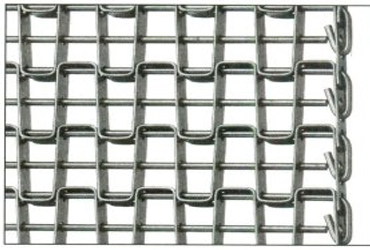

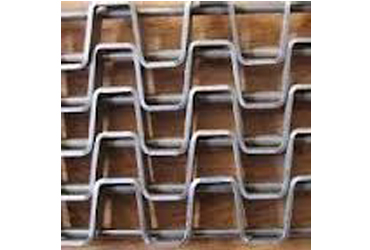

Honey comb belt is constructed from formed cross rods and flat metal strips. Honey comb belt is good choice which requires both durability and open belt design. Honey comb belt open mesh construction for quick and for air circulation. Belt is easy to clean. Belt is easy to assemble.

Honey comb belt is also known as flat wire belt .the belt is straight ruining belt with extremely high strength to weight ratio.


Applications :

  • • Casting
  • • Baking
  • • Drainage
  • • Packaging
  • • Drying
  • • Washing
  • • Cooling
  • • Cooking
  • • Freezing
  • • Heating
  • • Weed clearing
  • • Sorting
  • • Recycling
  • • Loading
  • • Painting
  • • Assembly

Specifications :

CAST IRON Cast from high grade iron
STAINLESS STEEL 304 Stainless (316 Stainless available on special order)
PLASTIC uhmw polyethylene sprockets. Can withstand continuous temps up to 180 Deg F
STEEL Uused for flangeless and 1/2 x 1/2 True series sprockets
CAST NYLON 6 FDA Approved
Load capacity 150 kg/mtr

Opening Sizes :

  • • 1” x 1” ,
  • • ½ “ x ½”
  • • ½” x 1”

HEAVY DUTY BELTS: 1/2" Belt Height, with 5 mm cross rod for heavy duty belts. STANDARD DUTY BELTS: 3/8" Belt Height, with 3 mm cross rods for light duty belts.
